ECO Farm 2KW/48V Off Grid Home Solar Power System Kits

Solar powered grow rooms are not anything new. The problem with such grow rooms has been cost efficiency, but as solar panels become cheaper and more energy efficient, that problem is slowly becoming a non-issue.

Over the past 8 years the production of renewable energy sources has really taken off. Now, crafting a hybrid setup – one utilizing both the grid and solar – is an excellent solution for this problem, retaining a lot of benefits that come with renewable energy. The electrical bill would still definitely plummet.

For those not wanting to settle for less than a fully solar powered grow room, there is still hope, thanks to innovation in the field of electricity storage. Today there are batteries that provide as much as 10kWh and can be charged by renewable energy sources. They can also be charged using electricity from the house during cheap hours, to use during high demand hours, so it could be utilized in the hybrid setup too.

A grow room that’s not a huge draw on the electricity bill every month is every indoor gardener’s dream. But, it is possible.

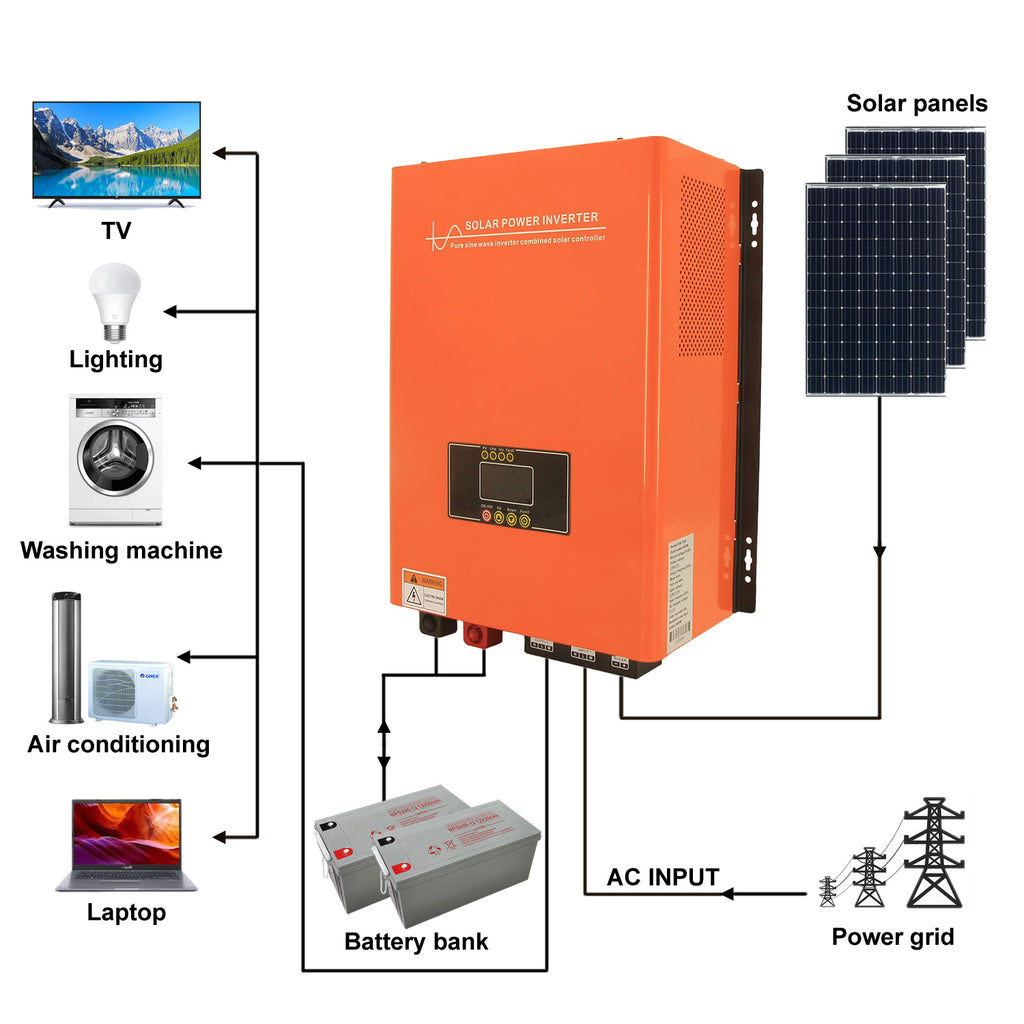

ECO Farm grow room solar energy system - Maximum Load total power 2000W - solar power generation 8KWH per day, costs almost nothing to operate and protects you from utility rate increases because it can be operated off the grid. It also works independently of local electrical circuits so the room will stay powered up without affecting your home.

1. Monocrystalline Silicon Solar Panel*3:

Rated Power (Pmax): 450W Max. Excitation Voltage(Vmp): 42.1V
Max. Operating Current (Imp): 10.69A Open-circuit voltage(Voc):49.84V Size: 2108*1048*35mm
Weight: 25.6kg
Efficiency: 20.4%

2. Solar Inverter*1:

2000W-48VDC 220VAC 50Hz
Built-in MPPT Controller: 40A/48V LED+LCD Display
1. High frequency switching technology
2. Multiple protection technology
3. MPPT control technology
4. Battery management technology
5. Size：486mm*361mm*175mm
6. Weigh：23.2kg

3. Lead-acid Battery*4:

Model: NPG100-12
Voltage: DC12V
Capacity: 100Ah
Type: Energy storage batteries
Chemical Type: Gel Battery
Size：330mm*171mm*220mm
Battery cover and exhaust plug structure: Valve controlled sealed storage battery Status of charge: maintenance-free battery



Zinc plated steel brackets: good bearing capacity, no deformation, anti-corrosion, no maintenance costs, can bear 3 pcs of 450W PV panels.
System configuration: 1 set of bracket per system

battery cable：10mm² length 35mm 2PCS
battery cable：10mm² length 1m 3PCS
PV cable：4mm² length 40M 1 Set
MC4 connector:1 pair

Polyethylene TUV certified 4MM2 red and black copper core photovoltaic outdoor special cable,
Application of temperature: -40℃~120℃ ,Good resistance to UV, ozone and other compounds
Good mechanical structure strength. Effectively waterproof, oil and chemical corrosion proof

MC4 connector Main Features：
1. Large current and high voltage bearing capacity
2. Good impact resistance
3. Low contact resistance
4. Innovative sealing, waterproof and dustproof design, up to IP67 5. Excellent high and low temperature, waterproof, UV resistance and other properties, suitable for long-term outdoor use.

1. Monocrystalline Silicon Solar Panel*3
2. Solar Inverter*1
3. Lead-acid Battery*4
4. PV Bracket*1
5. PV cable/battery cable*1
6. MC4 connector*1
