Description
-

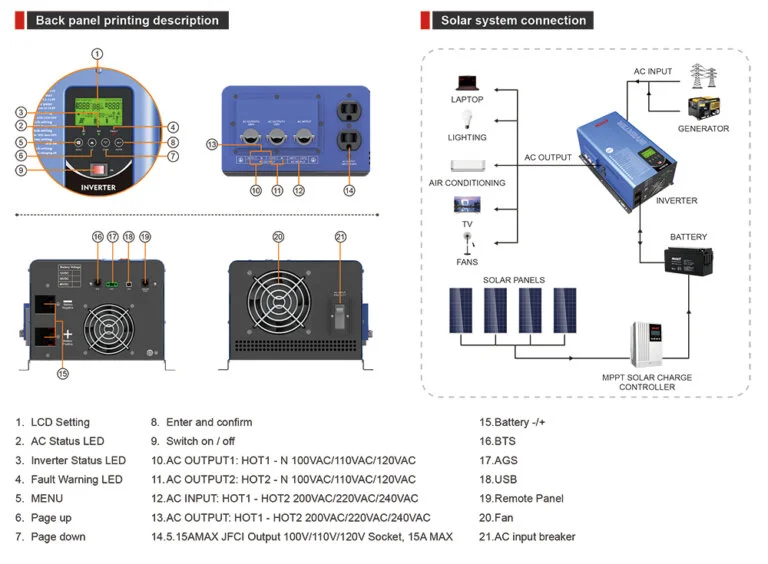

This split phase inverter EP3300 TLV series, capacity from 1KW-6KW, DC 12V/24V/48V, it’s applicable to 110VAC\120VAC markets demands, which matches AC 110VAC\120V single phase, or two phase 220V\240V; In LCD display, you can set output voltage, frequency, charging voltage, charging current to design best use based on different loads applications; meanwhile, you can also connect extra solar charge controller to build a solar home system, take use of sunshine freely and save electricity bills. - Pure sine wave output, split phase HOT1+ N + HOT2 available, 120VAC/220VAC
- MFD (multi-function display) & Friendly user interface
- 3 Steps optimizing charge for battery pack
- Overload and short-circuit protection
- Settable: charging/charging current, utility/Battery priority, utility input wide/narrow range
- Inverter voltage can be set to 100V/110V/120V
- Inverter frequency can be set to 50/60Hz
| MODEL | EP33- 1012 | EP33- 1024 | EP33- 1512 | EP33- 1524 | EP33- 2012 | EP33- 2024 | EP33- 3024 | EP33- 3048 | EP33- 4024 | EP33- 4048 | EP33- 5048 | EP33- 6048 |
| Inverter Output | ||||||||||||
| Rated power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||
| Surge rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | |||||
| Capable of starting electric motor | 1P | 1P | 1.5P | 1.5P | 2P | 3P | ||||||
| Power factor | 1 | |||||||||||
| Wave form | Pure sine wave / Same as input wave form (bypass mode) | |||||||||||
| Output voltage RMS | 100V / 110V / 120VAC (200V / 220V / 240VAC) ±10% | |||||||||||
| Output frequency | 50Hz or 60Hz (±0.3Hz) (can be set) | |||||||||||
| Overload protection | Breaker + software protection | |||||||||||
| Output short circuit | Breaker + software protection | |||||||||||
| Inverter efficiency (peak) | >80% | |||||||||||
| Overload | 100% < Load < 110% (alarm 5min then stop output and fault code 07) 110% < Load < 125% (alarm 60s then stop output and fault code 07) Load > 125% (alarm 10s then stop output and fault code 07) | |||||||||||
| Warranty | One year (standard), 2 years optional (IP20) | |||||||||||
