Description
- MPPT (Maximum Power Point Tracking) solar charge controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each charge controller allows customized battery recharging.

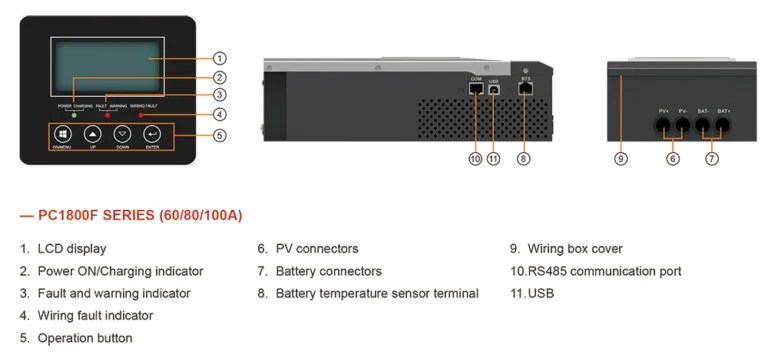

- LCD display, easy to operate on LCD screen
- Multi stage charging (3-stage charging, parallel charging and equalized charging function)
- BTS - Battery remote temperature sensor terminal
- Enable to charge Li-thium, Gel, lead-acid battery
- With RS485 & USB communication port
- Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, output short circuit
| MODEL | PC18-6015F | PC18-8015F | PC18-10015F | |||
| Nominal Battery System Voltage | 12V / 24V / 48VDC (Auto detection); 36V (Setting) | |||||
| CONTROLLER INPUT | ||||||
| Battery Voltage | 12V | 24V | 36V | 48V | ||
| Maximum Solar Input Voltage | 100V | 145V | ||||
| PV Array MPPT Voltage Range | 15~95V | 30~130V | 45~130V | 60~130V | ||
| Maximum Input Power | 12 Volt-940W | 12 Volt-1250W | 12 Volt-1560W | |||
| 24 Volt-1880W | 24 Volt-2500W | 24 Volt-3120W | ||||
| 36 Volt-2820W | 36 Volt-3750W | 36 Volt-4680W | ||||
| 48 Volt-3760W | 48 Volt-5000W | 48 Volt-6250W | ||||
| BATTERY | ||||||
| Charging Set Points | Absorption Stage | Float Stage | ||||
| Flooded Battery | 14.2V / 28.4V / 42.6V / 56.8V | 13.7V / 27.4V / 41.1V / 54.8V | ||||
| AGM (Default) | 14.4V / 28.8V / 43.2V / 57.6V | 13.7V / 27.4V / 41.1V / 54.8V | ||||
| Over-charging Voltage | 15.5V / 30.0V / 45.0V / 60.0V | |||||
| Over-charging Comeback Voltage | 14.5V / 29.5V / 44.5V / 59.0V | |||||
| Battery Defect Voltage | 10.0V / 17.0V / 25.5V / 34.0V | |||||
| Temperature Compensation Conefficient | -5mv / ℃ /cell (25℃ vef) | |||||
| Peak Conversion Efficiency | 98% (MPPT Efficiency 99%) | |||||
| Mximum Battery Current | 60Amps | 80Amps | 100Amps | |||
| Max Charging Current | 60amps continuous @ 40℃ ambient | 80amps continuous @ 40℃ ambient | 100amps continuous @ 40℃ ambient | |||
| GENERAL SPECIFICATION | ||||||
| Radiating Mode | Fan cooling | |||||
| DISPLAY & PROTECTION | ||||||
| Protections | Solar high voltage disconnect Solar high voltage reconnect Battery high voltage disconnect Battery high voltage reconnect High temperature disconnect High temperature reconnect | |||||
| MECHANICAL SPECIFICATIONS | ||||||
| Mounting | Wall mount | |||||
| Machine Dimension (W*H*D)(mm) | 152*85*294 (per pcs) | |||||
| G.W (kg) | 3kg/pcs | |||||
| Package Dimension (W*H*D)(mm) | 625*366*232 (4pcs / Carton) | |||||
| Gross Weight (kg) | 14kg | |||||
| OTHER | ||||||
| Environmental Rating | Indoor | |||||
| Operation Temperature Range | -10~55℃ | |||||
| Ambient Humidity | 0~90% relative humidity (non-condensing) | |||||
| Altiude | ≤3000m | |||||
