Description

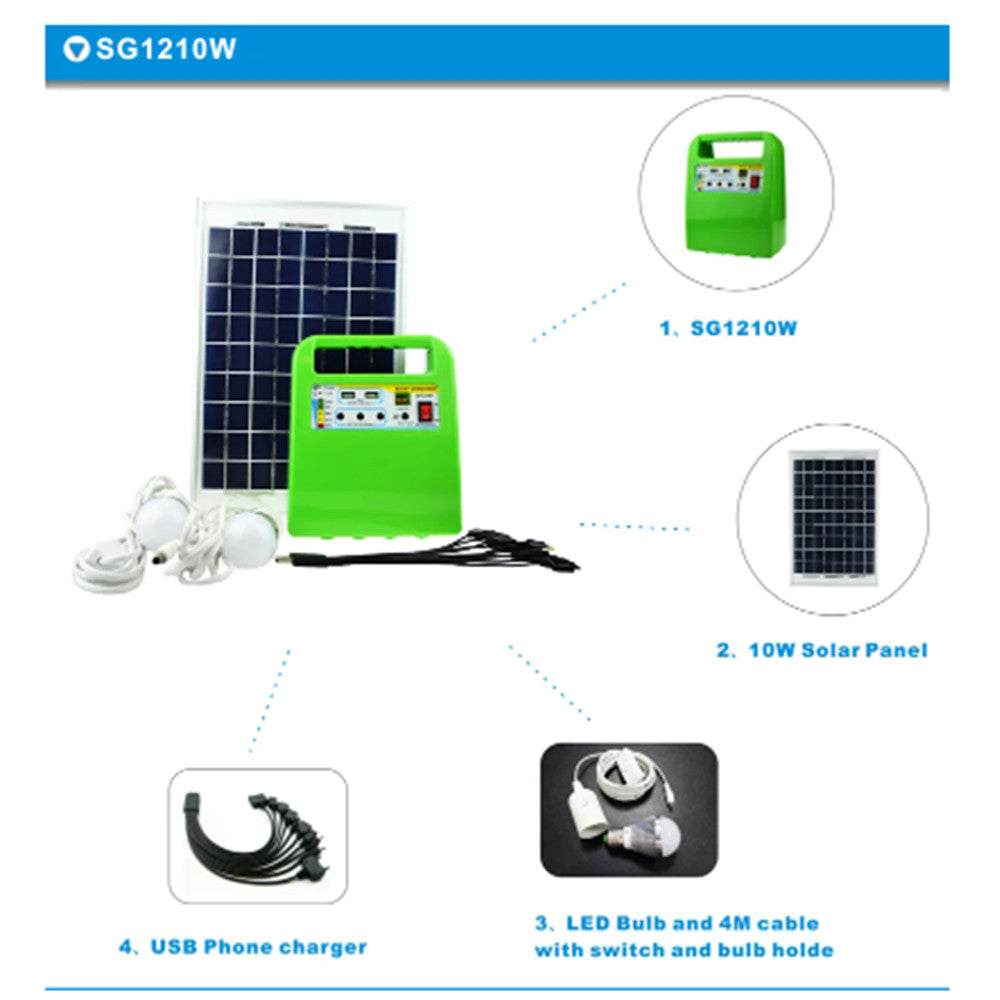

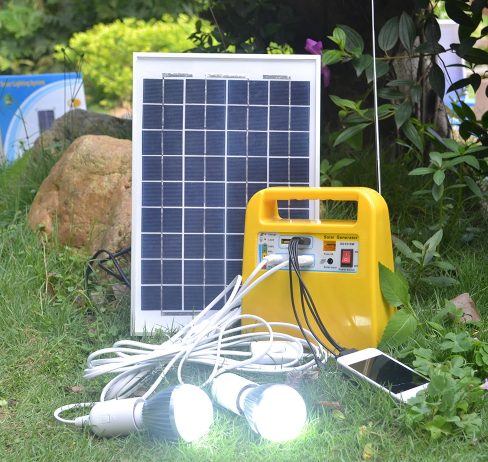

- SG1210W series solar lighting system is the newly design solar solution to provide the safety and security of having light when you need it most, the system kit with battery and controller built-in, and the PV panel with 6m cable which made with socket, it is the plug and play system, easily install.
- Solar panel: 10W/18V with 6M’S cable & foothold.
- Battery: 12V-7AH lead acid battery.
- LED bulb: 12V-3W X 2PCS, E27, 4M’S cable with switch & socket.
- MP3 and radio function.
- 3* DC output can power 3 rooms
- 2* USB port can charge all kind of mobilephones and IPAD, IPOD.
- USB: 10 in 1 mobile charge, can charge all kinds of phone.
- 5 lights to show the battery condition more accurately.
- Rated charing current: 1A.
- Rated discharing current: 2A for each (total 3).
- USB charging current: 1A.
- Charing hours: 7 hours.
- Lighting hours: 12 hours can work togetherof 2 bulbs at same time.
- Four colorsfor choosing (Red, Blue, Green, Yellow).
Model: SG1210W | ||||||
Solar Panel | 18V/10W | |||||
Lead-acid Battery | 12V/7AH | |||||
Solar Controller | 12V/5A | |||||
Mini Stereo | MP3 Player,Radio function | |||||
Output Voltage | USB 5V output: 5V/2A(Max) | |||||
DC 12V output: 12V/3A(Max) | ||||||
Charging Mode | PWM | Charging time: About 10hours | ||||
Size | Main case box: 425*125*300mm | Solar panel: 360*240*17mm | ||||
Weight | Main case box: 5kg | Solar panel: 1.2kg | ||||
Electricity Reference | ||||||
Number | Appliance | Power | Quantity | Working time | Total power | |
1 | Lamps | 3W | 2 | 5H | 30Wh | |
2 | Fan | 2.5W | 2 | 6H | 30Wh | |
3 | Ipad | 10W | 1 | 2H | 20Wh | |
4 | Total | 84Wh |
