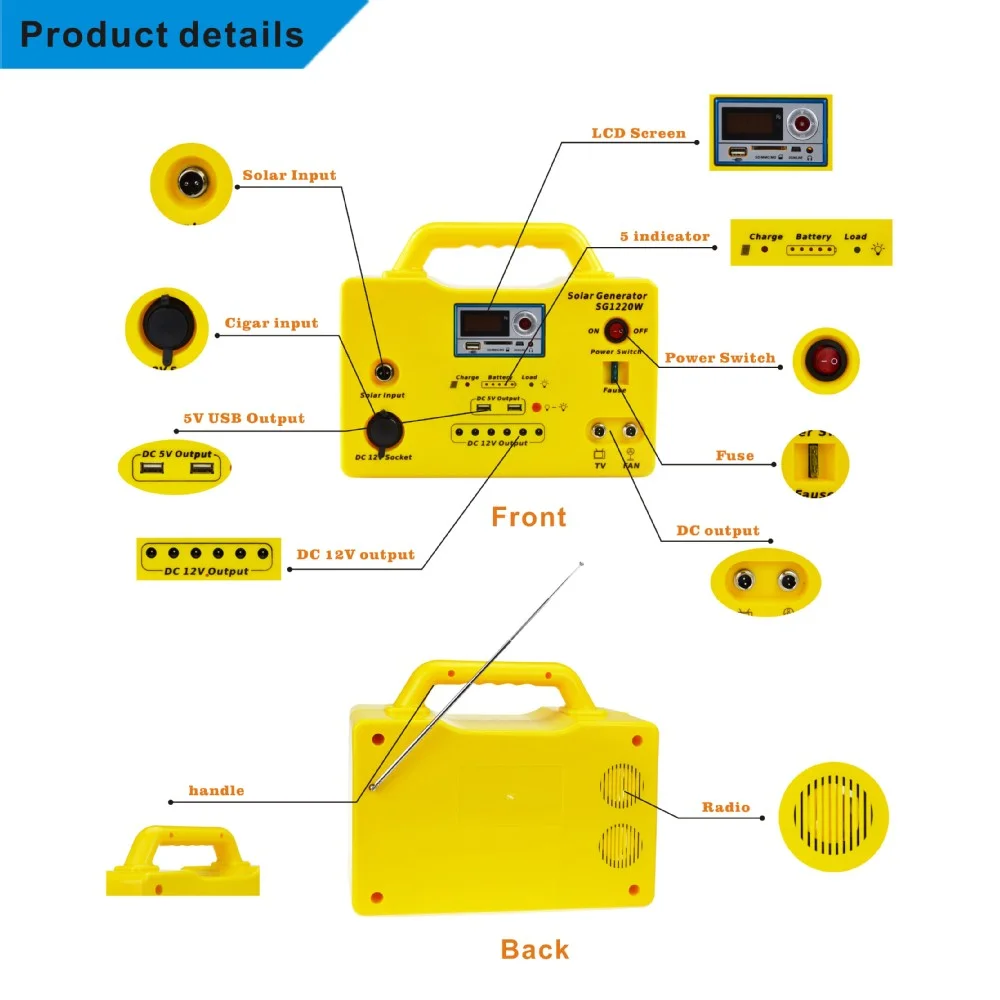

Description
- SG1220W series solar lighting system is the newly design solar solution to provide the safety and security of having light when you need it most, the system kit with battery and controller built-in, and the PV panel with 6m cable which made with socket, it is the plug and play system, easily install.

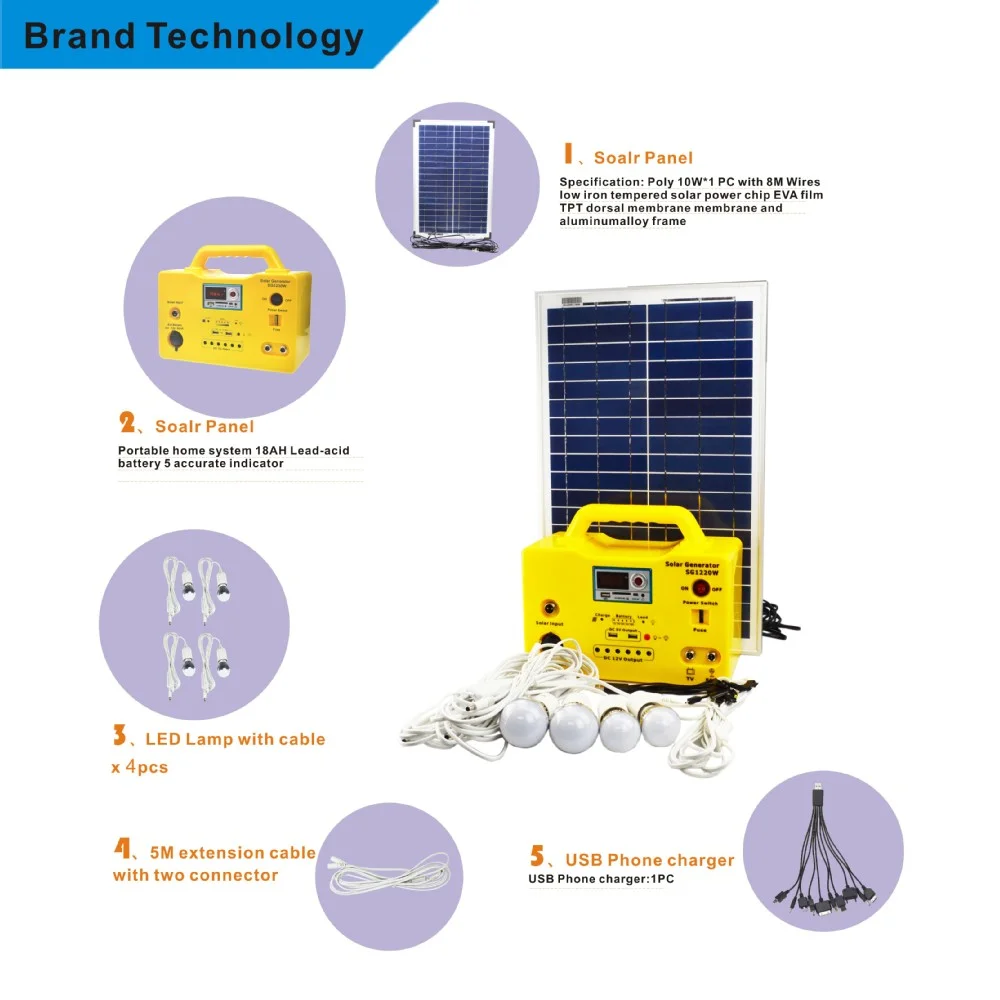

- Solar panel: 20W/18V, with 8m’s cable.
- Battery: 12V-12AH lead acid battery.
- LED bulb: 12V-3W X 2PC & 12V-5W X 2PC E27,4m’s Cable with switch & socket,1 by 2 extension cable 5m.
- MP3 and radio function.
- 6* DC output can power 6 rooms.
- 2* USB port can charge all kind of mobilephones and IPAD, IPOD.
- USB: 10 in 1 mobile charger, can charge all kinds of phone.
- 5 lights to show the battery condition more accurately.
- Rated charging current: 2A.
- Rated discharging current: 2A for each (total 6).
- USB charging current: 1A.
- Charging time: 7-8 hours.
- Lighting hours: 9 hours working together for 4 bulbs at the same time.
- Two colors for choosing (blue, yellow).
| Model: SG1220W | ||||||
| Solar Panel | 18V/20W | |||||
| Lead-acid Battery | 12V/12AH | |||||
| Solar Controller | 12V/5A | |||||
| Mini Stereo | MP3 Player,Radio function | |||||
| Output Voltage | USB 5V output: 5V/2A(Max) | |||||
| DC 12V output: 12V/6A(Max) | ||||||
| Charging Mode | PWM | Charging time: About 10hours | ||||
| Size | Main case box: 300*275*170mm | |||||
| Solar panel: 360*530*23mm | ||||||
| Weight | Main case box: 8kg | |||||
| Solar panel: 2.5kg | ||||||
| Electricity Reference | ||||||
| Number | Appliance | Power | Quantity | Working time | Total power | |
| 1 | Lamps | 3W | 2 | 5H | 30Wh | |
| 2 | Fan | 15W | 1 | 6H | 90Wh | |
| 3 | Ipad | 10W | 1 | 2H | 20Wh | |
| 4 | Total | 144Wh | ||||
