Description

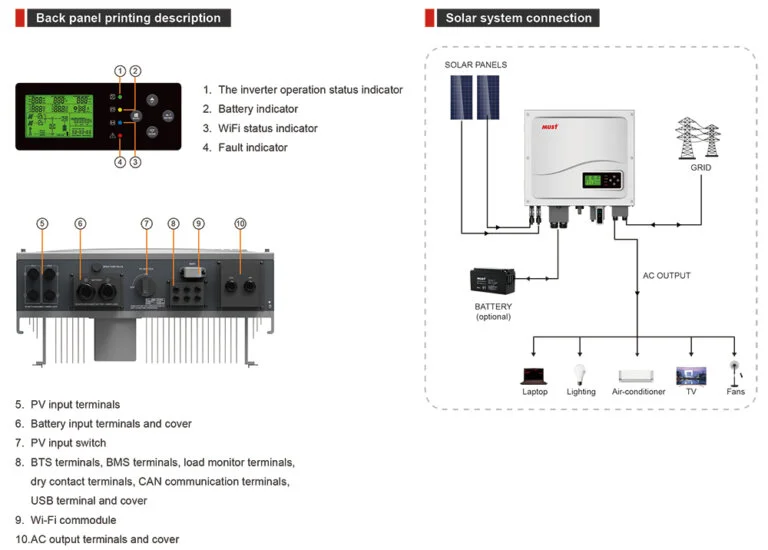

- This is a flexible and intelligent energy storage solar inverter with a wide range of MPPT Voltage. Combining functions of off grid and on grid. This hybrid solar inverter can power all kinds of appliances in home or office, and can also be used in power stations.
- Wide range of MPPT voltage: 120-550V
- Multiple operation modes: Grid-tie,off grid and grid-tie with back up
- Support LCD display&Smart LCD setting
- Available export control CT sensor function
- Multiple communications: USB,RS485,GPRS and wifi etc.
- Monitoring inverters freely via computers or mobile phones
- Full protection function: Over-voltage,over-frequency, over-current, over-temperature, and AC short-circuit automatic protection
- Intelligent BMS battery management function
- Fanless low-noise design.
- IP65 dust-proof and water-proof
| RATED POWER(W) | 5000 |
| PV INPUT(DC) | |
| Maximum recommended DC power(W) | 7000 |
| Nominal DC operating voltage(V) | 360 |
| Maximum DC voltage(V) | 550 |
| MPPT voltage range(V) | 120~550 |
| Maximum input current(A) | 12.5 / 12.5 |
| Maximum short circuit current(A) | 15/15 |
| Dimension(W/H/D)(mm) | 480*420*215 |
| Net weight (kg) | 27 |
| DC connection | H4 / MC4 |
| AC connection | Terminal Block |
| Display | LED+LCD |
| Communication interfaces | Wi-Fi / USB / GPRS / RS485 |
| Ingress protection rating | IP65 |
| Humidity | 0~95% RH(No codensing) |
| Operating temperature range | -20℃ +60℃ With derating above 45℃ |
| Cooling concept | Natural |
| Altitude | <3000m |
