Description

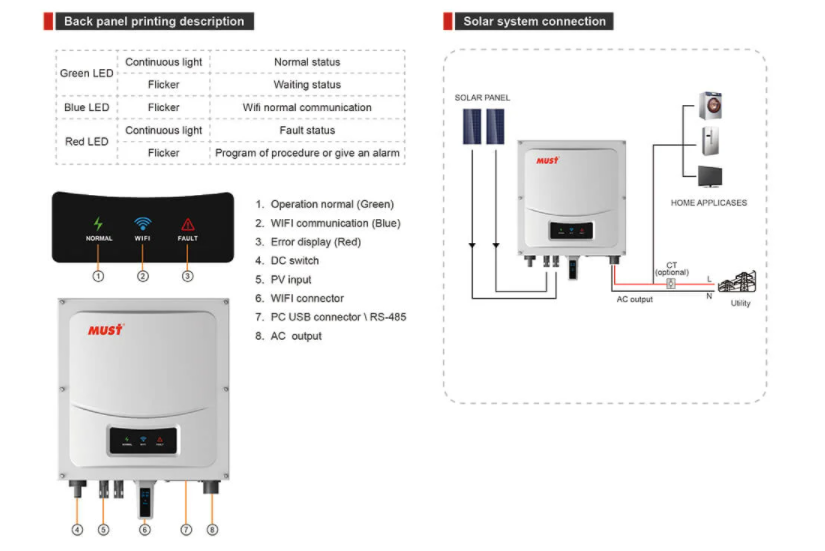

- PH5000 series PV inverters take full account of the needs of end customers, with excellent performance at the same time, use LED as inverter status display, effectively improve product life. Using DSP digital control,could afford wide grid voltage range, have a full range of protection features; to maximize the benefits at the same time, greatly enhance the reliability of the product.
- MPPT efficiency up to 99.50%
- Multiple communications: USB, WIFI etc
- Monitoring inverters freely via mobile phonese APP
- Fanless low-noise design
- IP65 water-proof and dust-proof
MODEL | PH50-2500 | PH50-3000 | PH50-3600M | PH50-4200M | PH50-4600M | PH50-5000M | PH50-6000M |
RATED POWER(W) | 2500 | 3000 | 3600 | 4200 | 4600 | 5000 | 6000 |
PV INPUT(DC) | |||||||
Maximum recommended DC power(W) | 2875 | 3450 | 4100 | 4800 | 5300 | 5750 | 7000 |
Nominal DC operating voltage(V) | 360 | ||||||
Maximum DC voltage(V) | 550 | ||||||
Start voltage(V) | 100 | ||||||
MPPT voltage range(V) | 80~550 | ||||||
Maximum input current(A) | 11 | 11 | 11月11日 | 11月11日 | 11月11日 | 11月11日 | 11月11日 |
No.of MPP tracker | 1 | 2 | |||||
Strings per MPP tracker | 1 | ||||||
GRID OUTPUT(AC) | |||||||
Nominal AC output power(W) | 2500 | 3000 | 3600 | 4200 | 4600 | 5000 | 6000 |
Maximum AC output power(VA) | 2500 | 3000 | 3600 | 4200 | 4600 | 5000 | 6000 |
Nominal output voltage(V);range(V) | 220 / 230 / 240;180-280 | ||||||
AC grid frequency(Hz);range(Hz) | 50/60;45~55/55-65 | ||||||
Nominal output current(A) | 10.9 | 13 | 15.7 | 18.3 | 20 | 21.8 | 26.1 |
Maximum output current(A) | 11.4 | 13.7 | 16.4 | 19.1 | 21 | 22.8 | 27.3 |
Total harmonic distortion i(THDi) | 3.THDi@Full load &THDv <1% | ||||||
Power factor at rated power | 1 | ||||||
Displacement power factor | 0.8leading ~ 0.8lagging | ||||||
AC connection | Single phase | ||||||
EFFICIENCY | |||||||
Maximum efficiency | 97.20% | 97.20% | 97.40% | 97.40% | 97.40% | 97.40% | 97.40% |
Euro-efficiency | 96.80% | 96.80% | 97.00% | 97.00% | 97.00% | 97.00% | 97.00% |
MPPT efficiency | 99.50% | ||||||
Self-Consumption night(W) | <1 |
